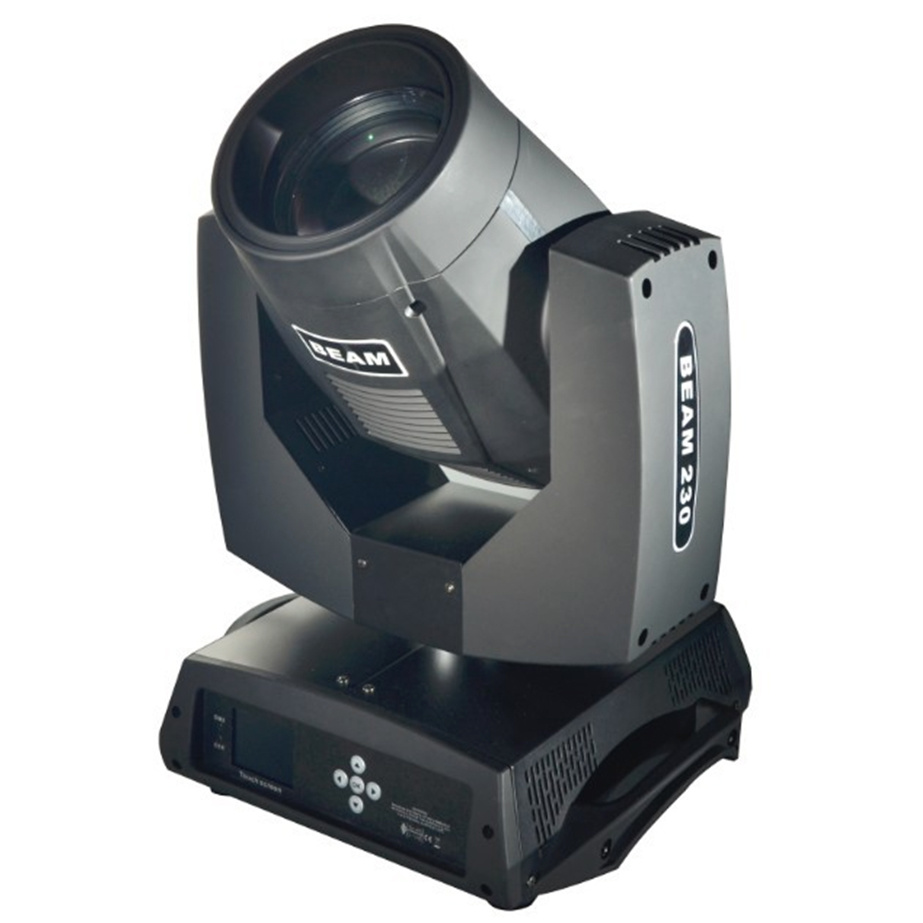

230W beam light

Key words:

Intelligent Control | Moving Head Light | Outdoor Waterproof | Mute Washing Light |

Category:

  • Product Description
    • Commodity name: 230W beam light
    • Commodity ID: YZ-B230
    Input voltage: AC100-240V 50/60HZ
    Rated power: 310W
    Light source: OSRAM 230W (7R)
    Ballast: Electronic Ballast
    Color temperature: 8000±500K Lamp life: 2000H
    Color wheel: one color wheel, 14 colors + white light + rainbow effect
    Pattern: one pattern plate, 17 patterns + white light + water effect, electric focus function, pattern plate can be changed
    Prism: 8 prisms (16 prisms optional) color disc can be adjusted to focus: 0-4 °;
    Atomization: atomization effect, 0-100% linear adjustment
    Strobe: two-chip strobe, speed 0.5--21 times / sec, the fastest frequency 20 times / sec
    Rotation angle: 540° horizontal; 270° vertical;
    Control mode: international standard DMX512 signal, 2 control channel modes, horizontal and vertical speed adjustable.
    Channel: Standard 16-channel mode, expandable 20 channels
    Display: Chinese and English LCD display, can display the time of use of lamps and lamps.
    Protection level: IP20 safety protection: Automatically cut off power signal control when the body is overheated or the system fails
    Carton size: 450*430*530mm (L*W*H)
    Fastest frequency >20 times / sec
